Detail Produk
Tempat asal: CINA
Nama merek: TENCHY
Sertifikasi: USP CLASS VI
Nomor model: TCM-005
Syarat Pembayaran & Pengiriman
Kuantitas min Order: 500
Kemasan rincian: Tabung lambung silikon dengan desinfeksi ganda dan pengemasan steril - tabung makan medis - grade, d
Waktu pengiriman: 5-8 hari
Syarat-syarat pembayaran: D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 1000 per hari

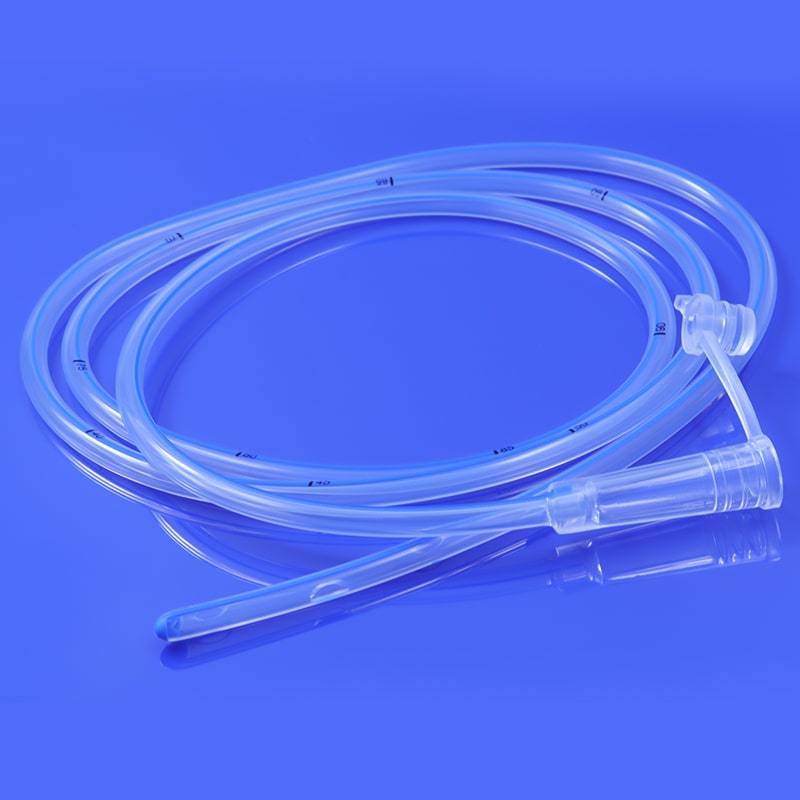

Medical-grade silicone feeding tubes are specifically designed for insertion to deliver nutritional supplements into the stomach of patients with impaired oral intake. Featuring optimal flexibility and biocompatibility, they provide gastrointestinal nutrition support for patients with normal digestive function but swallowing disorders, facilitate gastric lavage in drug poisoning emergencies, and enable gastric juice aspiration to monitor therapeutic efficacy in upper gastrointestinal bleeding management.
Feature | Technical Specifications & Clinical Value |
Medical Silicone | 100% platinum-cured silicone, free from plasticizers/allergens. Passes cytotoxicity & skin irritation tests (ISO 10993). |
Low-Trauma Tip | Laser-polished closed distal tip + smooth side eyes (≤0.5mm edges) to prevent mucosal adherence and ulceration. |
Kink-Resistant | Dynamic hardness balance (45±5 Shore A). Optimized lumen design reduces clogging risk. |
Depth Markings | 1cm interval depth scales (FDA color standards, ≤0.2mm error). Color-coded connectors (red-gastric/blue-enteral). |
Sterility Assurance | Double EO sterile barrier packaging (<1ppm residues). Supports gamma resterilization for OR use. |
Basic Information
Item | Specification |
Model | TCM-001 (ODM/OEM supported) |
Brand | TENCHY Medical® (custom packaging/logo/manuals) |
Certifications | CE 0459 (Class IIa), FDA 510(k), USP Class VI, LFGB, full biocompatibility reports |
Sterilization | Ethylene Oxide (EO), batch traceable |
Physical Specifications
Parameter | Range | Notes |
Diameter (FR) | 8-26 FR (2FR increments) | ID: 2.67mm(8FR) ~ 6.67mm(20FR) |
Length | 1250cm | Custom length (±5cm precision) |
Side Eyes | 2~6 eyes (size-adapted) | Total eye area > lumen area to prevent clogging |
Temp Resistance | -80℃~250℃ | Autoclavable (reusable type only) |
Performance Data
Parameter | Value | Standard |
Indwell Time | ≤30 days | EN 1618:2021 long-term implant |
Reuse Cycles | Single Use | Tensile strength loss <8% post-autoclave |
Flow Rate(20FR) | ≥250ml/min (aqueous) | 30° gravity drip simulation |
Tensile Strength | ≥15N (break threshold) | ISO 10555-1 catheter testing |
Radiopacity Acc. | ≤1cm positioning error | Clinical DSA validation |
Service Terms
Item | Policy |
Samples | 3 standard models free (requires medical license); global delivery in 3 days |
Customization | OD/length/scale colors/packaging/logo; MOQ 500 units |
Shelf Life | 3 years (unopened, <25℃, dark storage) |
Support | Insertion videos/complication guide/sterilization protocols (multilingual) |
Applications:
· ICU gastric feeding
· Gastric feeding after partial gastrectomy for gastric Cancer
· Neurological Rehabilitation Gastric Feeding
· Home Care Gastric Feeding for Patients with Chronic Diseases (Diabetes Mellitus/Chronic Kidney Disease)
· Home Care Gastric Feeding for Long-Term Bedridden Patients
