Menyoroti:

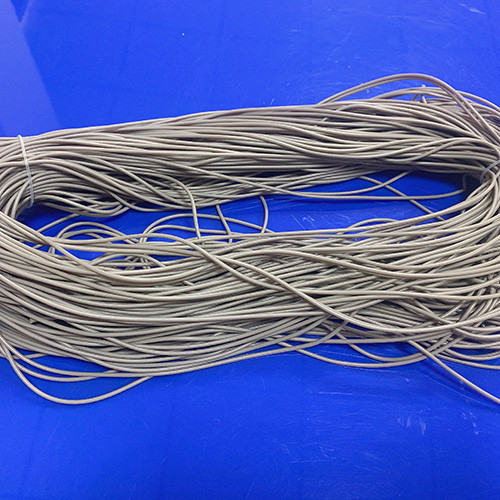

0.3mm Flexible Silicone Hose
, Thin Wall Flexible Silicone Hose
, Aging Resistance Flexible Silicone Hose
Pabrikan: |
Shenzhen Tenchy Silicone and Rubber Co., Ltd |
Warna: |
Transparan, putih, merah, biru, abu -abu, hijau, dll |
Ukuran: |
Dapat disesuaikan |
Ketebalan dinding: |
0.2mm |
Bahan: |
100% bahan baku silikon murni |
Kekerasan: |
50 Pantai A |
Set Kompresi:: |
8% (150 ℃/22h) |
Suhu: |
-60 ℃ ~ 200 ℃ |
kepadatan:: |
1.13 ± 0,05g/cm³ |
Resistensi air mata (kekuatan air mata), die B:: |
> 30kk/m |
Moq: |
1000 meter |
Model no.: |
TS-TC9637 |
Nilai: |
Nilai medis |
Penggunaan: |
Transportasi cairan, tutup sebagai lapisan |
Medical Grade Silicone Rubber Tubing
| Medical Grade Silicone Tubing |
| Item # |
Specification |
Tolerance |
Available Length per coil (meter) |
| ID(mm) |
OD(mm) |
Thickness
(mm) |
for ID |
for Thickness |
| MST-068 |
0.7 |
1.1 |
0.2 |
±0.02 |
±0.02 |
30,50 |
| MST-069 |
1.0 |
1.4 |
0.2 |
±0.02 |
±0.02 |
30,50 |
| MST-051 |
0.5 |
1.2 |
0.4 |
±0.05 |
±0.05 |
30, 50, 100 |
| MST-0515 |
0.5 |
1.5 |
0.5 |
±0.05 |
±0.05 |
30, 50, 100 |
| MST-052 |
0.5 |
2.0 |
0.8 |
±0.05 |
±0.05 |
30, 50, 100 |
| MST-0819 |
0.8 |
1.9 |
0.6 |
±0.05 |
±0.05 |
30, 50, 100 |
| MST-12 |
1.0 |
2.0 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
| MST-13 |
1.0 |
3.0 |
1.0 |
±0.10 |
±0.05 |
30, 50, 100 |
| MST-1525 |
1.5 |
2.5 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
| MST-23 |
2.0 |
3.0 |
0.5 |
±0.10 |
±0.05 |
30, 50, 100 |
| MST-24 |
2.0 |
4.0 |
1.0 |
±0.10 |
±0.05 |
30, 50, 100 |
| MST-2564 |
2.5 |
6.4 |
2.0 |
±0.10 |
±0.10 |
30, 50, 100 |
| MST-34 |
3.0 |
4.0 |
0.5 |
±0.10 |
±0.10 |
30, 50, 100 |
| MST-47 |
4.0 |
7.0 |
1.5 |
±0.10 |
±0.10 |
30, 50, 100 |
| MST-57 |
5.0 |
7.0 |
1.0 |
±0.15 |
±0.10 |
30, 50, 100 |
| MST-68 |
6.0 |
8.0 |
1.0 |
±0.15 |
±0.10 |
30, 50, 100 |
| MST-79 |
7.0 |
9.0 |
1.0 |
±0.15 |
±0.10 |
30, 50, 100 |
| MST-810 |
8.0 |
10.0 |
1.0 |
±0.20 |
±0.10 |
30, 50 |
| MST-912 |
9.0 |
12.0 |
1.5 |
±0.20 |
±0.10 |
30, 50 |
| MST-1013 |
10.0 |
13.0 |
1.5 |
±0.20 |
±0.10 |
30, 50 |
| MST-1216 |
12.0 |
16.0 |
2.0 |
±0.20 |
±0.10 |
30, 50 |
| MST-1418 |
14.0 |
18.0 |
2.0 |
±0.25 |
±0.15 |
30, 50 |
| MST-1620 |
16.0 |
20.0 |
2.0 |
±0.30 |
±0.15 |
30, 50 |
| MST-1925 |
19.0 |
25.0 |
3.0 |
±0.35 |
±0.20 |
30, 50 |
| MST-2531 |
25.0 |
31.0 |
3.0 |
±0.60 |
±0.30 |
30, 50 |
Main Features
● High sanitation level, can be sterilized by CIP, SIP or radiation or in autoclave
● Non-toxic, inert, harmless to human body
● Excellent aging resistance
● High tear resistance, Good resilience
● Resistance to weak acids and alkalis
● High-Low Temperature resistant: -60℃ to 200 ℃
Our medical silicone tube is produced in a clean room, the production workshop is kept clean and dust-free for a long time
Basic Information
● Production process: platinum cured silicone extrusion
● Material: 100% silicone
● Size: customized
● Hardness: 30A-80A
● Color: Clear or customized
● Sample period: 1-2 days (3-5 days for customized tubing)
● Daily capacity: 10,000 meters
Custom size
● The wall thickness of the product can be 0.2mm to 20mm
● Minimum size 0.7*1.1mm
● Cut-to-Length service
● Minimum order quantity: 1000 meters
● Fast sample delivery, 2-3 days finish new samples
FAQ
Q1: Why choose Tenchy silicone?
We are committed to the silicone rubber sealing field. Our factory has 11 years of experience and has accumulated rich experience in silicone rubber processing and manufacturing to provide customers with the best silicone rubber sealing solutions and products.
Q2. How we ensure product quality?
100% inspection during production. Our products are certified with FDA, LFGB, RoHs certifications.
Q3: Can I get the sample?
Yes, we can provide stock samples for free, but a little sample charge for custom design, new customers are expected to pay for the delivery cost, the sample charge will be deducted from the payment for formal order.
Q4: How to Custom-made?
If you have a new product drawing or sample, we can customize according to them. We have Quick feedback on your needs and rapid mold opening.
Q5: How long is the sample lead time?
For existing product, it takes 1-2 days; If you want your design, it may take 3-5 days depends on your design.
