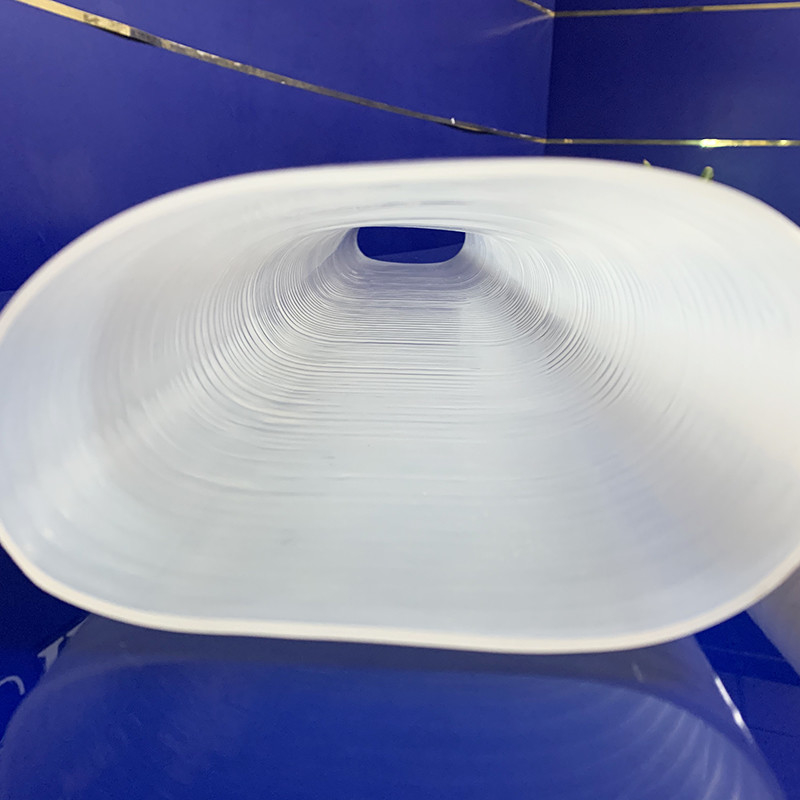

Large Diameter Silicone Hose Silicone Soft Connector Corrugated Hose
The silicone hose soft connector Inner diameter can be from 5mm to 1200mm, with a default wall thickness of 2mm.
● Product aliases: Silicone hose, silicone soft connector, corrugated hose
● Installation method: Secured with hose clamps for enhanced sealing performance.
● In-stock colors: Black, red, blue, yellow, and white (custom colors available upon request with provided samples)
● Quality assurance: Made from high performance silicone material without any recycled materials. Product testing reports are available upon request.
Product Features:
Silicone rubber is a novel high-molecular elastic material with excellent high-temperature (200-260°C) and low-temperature (-40~60°C) resistance. It possesses outstanding physiological stability and can withstand multiple rigorous disinfection treatments. The material has excellent resilience and minimal permanent deformation (no more than 50% after 48 hours at 200°C). It has a breakdown voltage of 20-25KV/mm and exhibits ozone, ultraviolet, and radiation resistance. Special silicone rubber also offers oil resistance.
Performance Characteristics:
● Continuous operating temperature range: -60°C to 260°C
● Flexible, arc-resistant, and resistant to corona discharge
● Various specifications can be customized according to customer requirements
● Non-toxic, odorless, and harmless
● High-pressure resistant and environmentally friendly
Certifications
● FDA 21 CFR 177.2600
● LFGB
Silicone Tube Hardness
● Shore 30A to 80A
Custom Size
● The wall thickness of the product can be 5mm to 1200mm
● Cut-to-Length service
● Minimum order quantity: 100 meters
● Fast sample delivery, 2-3 days finish new samples
| Inner Diameter(mm) |
Thickness(mm) |
Outer Diameter(mm) |
| 40 |
2 |
44 |
| 45 |
2 |
49 |
| 50 |
2 |
54 |
| 55 |
2 |
59 |
| 60 |
2 |
64 |
| 80 |
2 |
84 |
| 90 |
2 |
94 |
| 100 |
2 |
104 |
| 110 |
2 |
114 |
| 120 |
2 |
124 |
| 150 |
2 |
154 |
| 160 |
2 |
164 |
| 180 |
2 |
184 |
| 200 |
2 |
204 |
| 220 |
2 |
224 |
| 230 |
2 |
234 |
| 250 |
2 |
254 |
| 260 |
2 |
264 |
| 280 |
2 |
284 |
| 300 |
2 |
304 |
| 350 |
2 |
354 |
| 400 |
2 |
404 |
| 500 |
2 |
504 |
| ... |
... |
... |
| 1200 |
... |
... |
Frequently Asked Questions
Q1: In which industries are large-diameter silicone hoses commonly used?
A1: Large-diameter silicone hoses are widely used in food processing, pharmaceuticals, chemical, electronics, automotive, and aerospace industries due to their excellent performance characteristics.
Q2: What are the temperature ranges that large-diameter silicone hoses can withstand?
A2: Large-diameter silicone hoses can typically withstand temperatures ranging from -60°C to 260°C (-76°F to 500°F), making them suitable for applications involving extreme temperature variations.
Q3: Are large-diameter silicone hoses resistant to chemicals and oils?
A3: Silicone hoses exhibit good chemical resistance to a variety of substances. However, special silicone rubber hoses offer enhanced oil resistance for specific applications.
Q4: Can large-diameter silicone hoses be customized in terms of color and specifications?
A4: Yes, silicone hoses can be customized in various colors and specifications according to customer requirements.
Q5: What are the primary features of large-diameter silicone hoses?
A5: Large-diameter silicone hoses are known for their flexibility, high-temperature resistance, low-temperature resistance, non-toxicity, odorlessness, high-pressure resistance, and environmental friendliness.
Q6: How are large-diameter silicone hoses installed?
A6: Large-diameter silicone hoses are typically installed using hose clamps, ensuring a secure fit and improved sealing performance.
Q7: What is the standard wall thickness for large-diameter silicone hoses?
A7: The standard wall thickness for large-diameter silicone hoses is 2mm. However, this can be customized based on specific requirements.
Q8: Are large-diameter silicone hoses suitable for food-grade applications?
A8: Yes, large-diameter silicone hoses made from food-grade materials are suitable for use in food processing and related industries, as they comply with relevant safety and hygiene standards.
